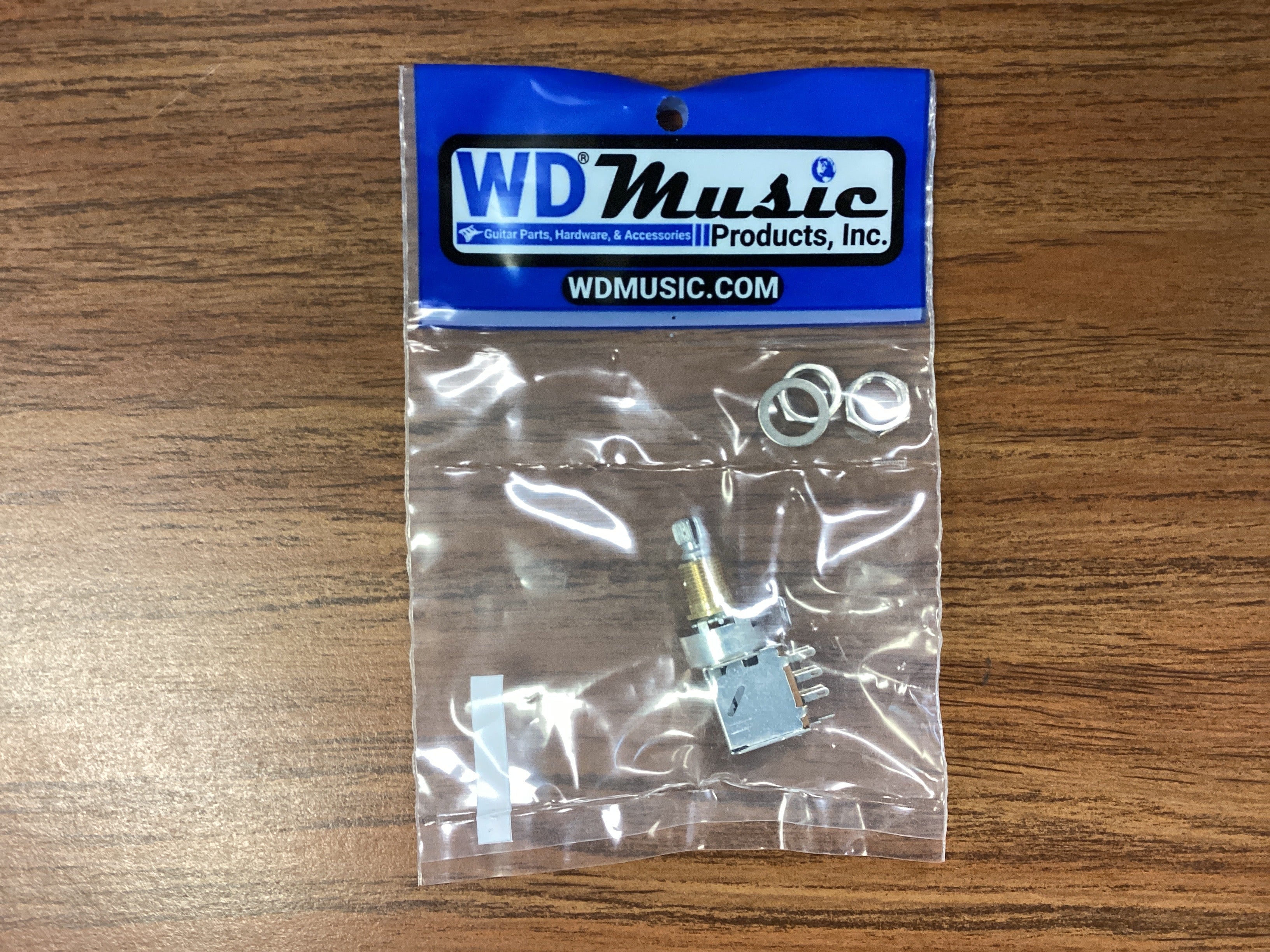

WD 500K Ohm Push/Pull Potentiometer
$9.00
Shipping calculated at checkout.
Quantity
📍 In stock at our Charleston, WV location
Local? Select in-store pickup at checkout to reserve yours today.
Questions about availability or shipping? Email us, call or text 614-259-7611 — we're happy to help.
WD500PP — 500K Ohm DPDT Push/Pull Potentiometer
Product Name: WD500PP — WD Music 500K Ohm DPDT Push/Pull Potentiometer
Brand: WD Music
Model: WD500PP-US
Type: Full-size potentiometer with push/pull actuator switch
Ohm Rating: 500K
Switch Type: DPDT (Double Pole Double Throw)
Actuator: Push/Pull (can be configured for push/push or push/pull)
Applications: Coil tapping, splitting, phasing, and similar humbucking pickup functions
Key Specifications
-
Thread: 3/8-32 US thread
-
Splines: 24 splines
-
Threaded Bushing Length: 3/8 inch
-
Size: Full-size instrument pot
Description
The WD500PP is a high-quality potentiometer designed for guitar and bass electronics. The push/pull actuator allows for quick switching between coil tap positions, pickup splitting, or phasing, making it a versatile choice for tone-shaping applications. The 500K ohm value is standard for humbucking pickups, ensuring proper signal level and tone
Typical Uses
-
Coil tapping for humbuckers
-
Splitting humbuckers into single-coil sounds
-
Phasing and tone-shaping switches
-
Custom pickup configurations
