Versatile Sound Reinforcement in a Compact Design

The Yamaha DBR12 powered PA speaker delivers 1000 watts of professional sound reinforcement in a compact 12-inch format. Featuring state-of-the-art Yamaha DSP processing, Class-D amplification, and a 1.4-inch compression driver, the DBR12 provides exceptional audio performance for live music, DJ events, presentations, and installed sound applications where space is at a premium.

1000 Watts of Efficient Class-D Power

The DBR12 delivers 1000 watts of bi-amplified Class-D power with exceptional efficiency and clarity. The high-output amplifier section provides clean, dynamic sound at any volume level, from intimate venues to medium-sized events. Experience powerful audio that maintains detail and definition even at maximum output.

12" Woofer with 1.4" Compression Driver

The precision-engineered 12-inch low-frequency driver delivers punchy, articulate bass with excellent transient response, while the 1.4-inch titanium compression driver provides crystal-clear high-frequency reproduction. This 2-way design ensures balanced, full-range sound that's perfect for vocals, instruments, and playback applications.

Yamaha DSP Processing for Any Application

State-of-the-art Yamaha DSP technology optimizes the DBR12's performance for multiple applications:

• FOH Mode: Optimized for front-of-house sound reinforcement
• Monitor Mode: Tailored EQ for floor monitoring applications
• Speech Mode: Enhanced clarity for spoken word and presentations
• D-CONTOUR: Intelligent dynamic EQ maintains tonal balance at all volumes

These DSP presets ensure optimal sound quality regardless of your application or venue acoustics.

Compact and Portable Design

The DBR12's compact 12-inch format makes it ideal for applications where space is limited or portability is essential. Despite its smaller footprint, the DBR12 delivers impressive output and coverage, making it perfect for solo performers, small bands, DJs, and corporate events.

Multiple Mounting and Placement Options

The DBR12's purpose-built enclosure supports versatile mounting configurations:

• Pole Mount: Standard 35mm pole socket for speaker stands
• Floor Monitor: Angled design for wedge monitoring
• Rigging Points: M8 suspension points for permanent installation
• Horizontal/Vertical: Flexible orientation for various applications

This versatility makes the DBR12 equally effective as a main PA speaker, stage monitor, or installed sound solution.

Lightweight, Tour-Ready Construction

The DBR12 features a lightweight enclosure that's easy to transport and set up, making it ideal for mobile DJs, solo performers, and touring musicians. The durable construction withstands frequent use and transport, while the professional finish looks great in any venue.

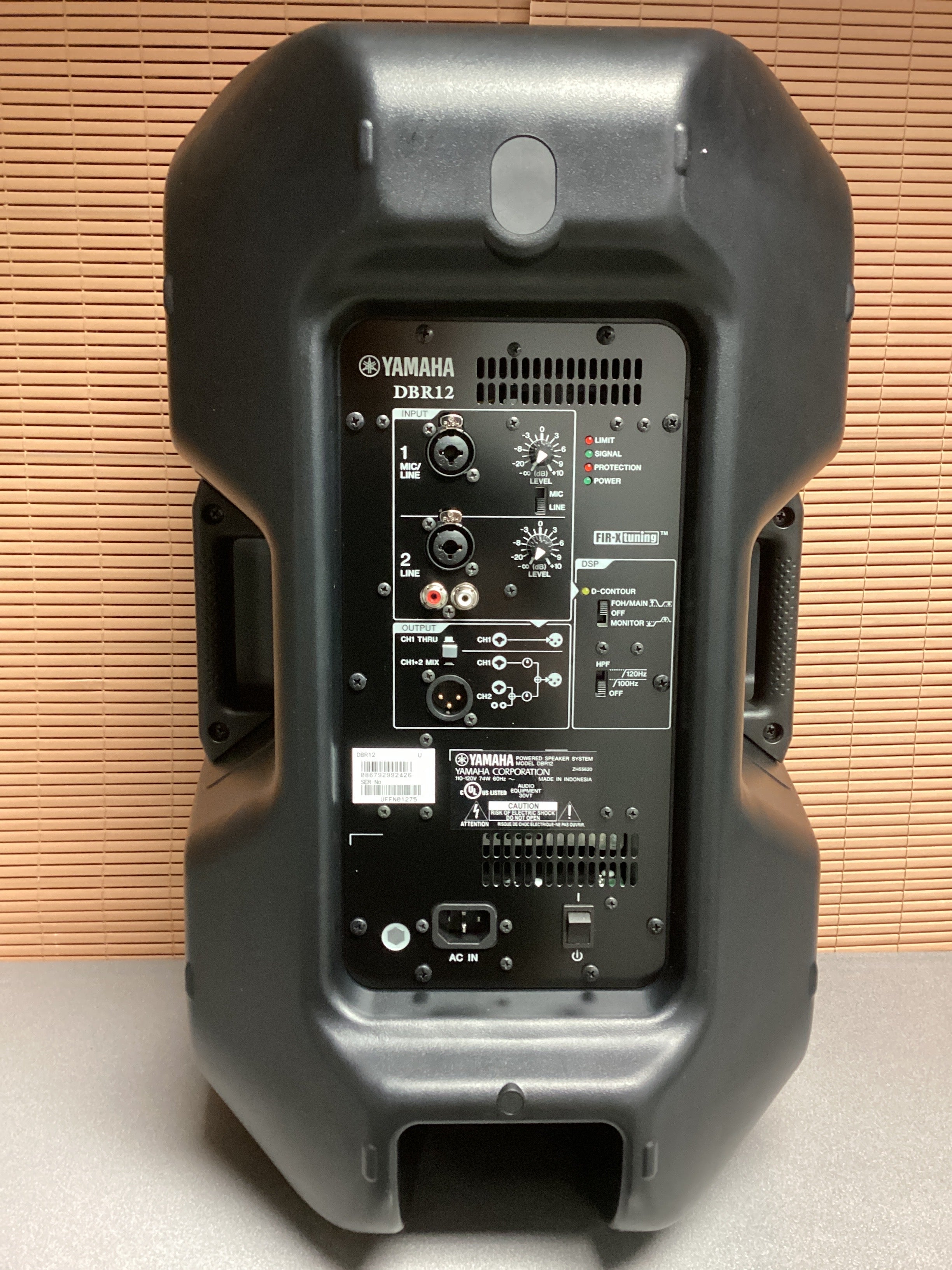

Professional Connectivity and Control

The DBR12 includes comprehensive input and control features:

• XLR/TRS Combo Input: Accepts mic or line-level signals
• XLR Output: Link multiple speakers or send signal to subwoofers
• Input Gain Control: Precise level adjustment
• Mode Selection: Quick access to DSP presets
• LED Indicators: Signal, limit, and protection status

High-Resolution Sound at Any Level

Yamaha's advanced amplifier and loudspeaker technologies ensure the DBR12 delivers high-resolution audio reproduction at any output level. From quiet background music to high-SPL live performances, the DBR12 maintains exceptional clarity, detail, and dynamic range.

Key Features & Specifications

• Power Output: 1000W (bi-amplified Class-D)
• Woofer: 12" high-excursion driver
• Tweeter: 1.4" titanium compression driver
• DSP: Yamaha digital signal processing with multiple modes
• Maximum SPL: 131 dB
• Frequency Response: 52 Hz - 20 kHz
• Coverage Pattern: 90° x 50° (H x V)
• Inputs: XLR/TRS combo jack
• Outputs: XLR link output
• Mounting: 35mm pole socket, M8 rigging points, monitor angle

Perfect For

Ideal for solo performers, small bands, mobile DJs, corporate presentations, houses of worship, schools, conference rooms, and any application requiring professional sound reinforcement in a compact format. The DBR12 excels as a main PA speaker, stage monitor, or installed sound solution for small to medium venues.

Why Choose Yamaha DBR Series?

Yamaha has been the professional audio industry standard for decades, with DBR Series speakers representing the perfect balance of performance, portability, and value. The DBR12 delivers Yamaha's legendary sound quality with modern DSP technology in a compact, versatile package.

Free shipping available. Order your Yamaha DBR12 powered speaker today and experience professional sound reinforcement in a compact, portable design.
